Sludge density meter
Digital type MLSS meter

Water quality measurement equipmentSludge density meter

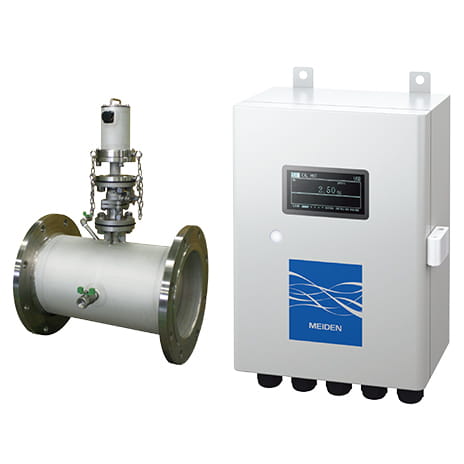

This meter is a water quality measuring device for measuring the sludge density (SS). It is used by inserting it into piping.

Contact Us

Product Features

Controlling the sludge concentration in the aeration tank is important for making treated sewage clean at sewerage treatment plant using the activated sludge process. Therefore, measurement instruments enabling continuous and accurate monitoring of sludge are required. Our sludge density meter meets these customers' needs.

  • This meter is less influenced by sludge color by adopting a special algorithm.
  • This meter is less influenced by solution color. In addition, green algae does not adhere to the detector plane.
  • The conditions of devices can be grasped easily with the built-in self-diagnostic function.
  • By adopting Japanese display, settings are easy with input in interactive mode.

Sludge turbidimeter (MLSS meter)

Our MLSS meter is the high functional and high performance version of the MLSS meter based on near-infrared and AC light technologies that we have developed for many years.

  • AC lighting is performed for the light source, thus this meter is unaffected by light from outside.
  • Vertical plane detection, which is unaffected by bubbles, is adopted; thus this meter is unaffected by bubbles.
  • Shape of the wetted part of the detector is simple so that impurities are rarely entangled. Therefore, frequency of maintenance can be reduced.
  • As a method for inputting calibration data, zero-span input method, regression automatic calculation method or polygonal line approximation can be selected.
  • Various parameters can be changed.
Item Digital type MLSS meter
Appearance
Type SSD-211
Measuring object Mixed suspended solid condensation (MLSS)
Measuring method Scattered light comparison method by using near-infrared AC light emission
(scattered light method with scattered light comparison)
3,000 to 20,000 mg/L (FS) (Setting is possible in units of 1,000 mg/L.)
Measurement accuracy Repeatability Within 2%
Temperature of measurement liquid 0 to 40°C (no freezing)
Ambient environmental conditions Temperature: -5 to 45°C Humidity: 90%RH or less
Output signal DC4 to 20 mA (maximum load resistance: 600 Ω, isolated output)
Contact output Classification (Upper and lower limit alarm, during maintenance, abnormality of meter)
Capacity AC100V 0.5A、DC24V 0.5A
Power source AC100 V±10% 50/60 Hz Single phase Approximately 10 VA
Weight Transformer Approx. 7 kgg
Detector Approx. 6 kg

Near-infrared sludge turbidimeter

Our near-infrared sludge turbidimeter is inserted into piping and used for measuring sludge condensation (SS). This optical meter is the sludge turbidimeter that is unaffected to fine bubble. This meter is optimal for measuring return sludge concentration and transported sludge concentration.

  • This meter is merely affected by fine bubbles during distribution.
  • Excessive piping including by-pass pipe is not necessary.
  • Maintainability is further enhanced by downsizing and saving weight of the detector.
  • It is possible to attach and detach the detector so that cleaning the detector is easy and accuracy control is easy.
  • For inputting calibration data, method can be selected from zero-span input method, regression automatic calculation method and polygonal line approximation.
  • Various parameters can be changed.
Item Near-infrared sludge turbidimeter
Appearance
Type SSD-321P SSD-400P
Measuring object Sludge concentration (SS), excess sludge, concentrated excess sludge in the piping Sludge concentration (SS), digested sludge, concentrated digested sludge in the piping
Measuring method Scattered light type Near-infrared light scattering type (laser light source)
1 to 5% (Setting is possible in units of 0.5%.) 1 to 10% (Setting is possible in units of 0.5%.)
Measurement accuracy Repeatability ±2%FS (after calibration)
Linearity Within 2% (however, 0 to less than 3% is the value when using polygonal line approximation treatment.) Within 2% (however, 0 to less than 3% is the value when using polygonal line approximation treatment.)
Temperature of measurement liquid 0 to 50°C (no freezing) 0 to 50°C (no freezing)
Ambient environmental conditions Temperature: -5 to 45°C Humidity: 90%RH or less Temperature: -5 to 45°C Humidity: 90%RH or less
Output signal DC4 to 20 mA (maximum load resistance: 600 Ω, isolated output) DC4 to 20 mA (maximum load resistance: 600 Ω, isolated output)
Contact output Classification (Upper and lower limit alarm, during maintenance, abnormality of meter) (Upper and lower limit alarm, during maintenance, abnormality of meter)
Capacity AC100V 0.5A、DC24V 0.5A AC100V 0.5A、DC24V 0.5A
Power source AC100 V±10% 50/60 Hz Single phase Approximately 10 VA AC100 V±10% 50/60 Hz Single phase Approximately 10 VA
Weight Transformer Approx. 7 kg Approx. 7 kg
Detector Approx. 3 kg Approx. 3 kg

Laser light type sludge turbidimeter

Our laser light type sludge turbidimeter is inserted into piping and used for measuring sludge condensation (SS). This optical meter is a sludge turbidimeter that is unaffected by fine bubbles. In addition,a near-infrared laser diode is used for the light source: thus there is little concern about light source failure.
This meter is optimal for measuring return sludge concentration and transported sludge concentration.

  • This meter is merely unaffected by fine bubbles during distribution.
  • Excessive piping including by-pass pipe is not necessary.
  • It is possible to attach and detach the detector so that cleaning the detection surface is easy and accuracy control is easy.
  • As a method for inputting calibration data, zero-span input method, regression automatic calculation method or polygonal line approximation can be selected.
  • Various parameters can be changed.
Item Laser light type sludge turbidimeter
Appearance
Type SSL-010P
Measuring object Sludge concentration (SS), excess sludge, concentrated excess sludge in the piping
Measuring method Light scattering type (laser light source)
1 to 5% (Setting is possible in units of 0.5%.)
Measurement accuracy Repeatability ±2%FS (after calibration)
Linearity Within 2% (however, 0 to less than 3% is the value when using polygonal line approximation treatment.)
Temperature of measurement liquid 0 to 50°C (no freezing)
Ambient environmental conditions Temperature: -5 to 45°C Humidity: 90%RH or less
Output signal DC4 to 20 mA (maximum load resistance: 600 Ω, isolated output)
Contact output Classification (Upper and lower limit alarm, during maintenance, abnormality of meter)
Capacity AC100V 0.5A、DC24V 0.5A
Power source AC100 V±10% 50/60 Hz Single phase Approximately 10 VA
Weight Transformer Approx. 7 kg
Detector Approx. 3 kg
  • *For dark-colored sludge (ink black) including digested sludge, sample test may be performed in advance.
