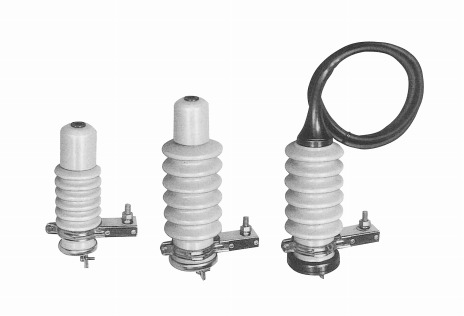

SORESTERs for distribution systems [standard type, contamination resistant type, and contamination resistant type with a mold cone]

Surge arrester for power distributionDistribution Class Surge Arresters (ZL-8A Series)

Zinc oxide surge arresters for 6kV distribution systems with a nominal discharge current of 2500 A

Product Features

A practical simple single gap and high performance zinc oxide blocks ensure that this surge arrester is compact and light weight. A reduced discharge voltage has improved the protective performance. Hardly any change in performance of the gap due to contamination, it maintains its stable operatimg performance, protecting distribution equipment from surge voltages.

  • Excellent protective performance
  • Managing multiple lightning surges and frequent surges
  • Excellent resistance to contamination
  • Compact, lightweight, and easy to handle

Applications and Solutions

It is an arrester for distribution substation for 6 kV system of nominal discharge current 2,500 A.


Characteristics of SORESTER for distribution substation

Type standard type contamination resistant type contamination resistant type

(with a mold cone)

Resistance against contamination (salt content attachment density mg/cm2) 0.06 0.35 0.35
Rated voltage(kV, r.m.s.) 8.4
Nominal discharge current(A, peak value) 2500
Commercial frequency discharge start voltage(kV, r.m.s.) 13.9 or more (15 or more)
Voltage resistance
(container only)
Commercial frequency
(kV, r.m.s.)
22 22(28)
Lightning impulse
(kV, peak value)
60 60(90)
Lightning impulse discharge start voltage
(kV, peak value)
100% 33 or less (30 or less)
0.5µs 38 or less (33 or less)
Discharge voltage (8/20 µs, 2,500 A)
(kV, peak value)
33 or less (22 or less)
Rated discharge withstand current Lightning impulse heavy current (kA) (4/10 µs) 10 X 2 times (50 X 2 times)
Square wave (A)
(2 ms)
75 X 20 times (150 X 20 times)
Lightning surge operation duty(8/20 µs, 2,500 A) Same polarity and reverse polarity, each 5 times
  • *The value in parentheses represents characteristics of SORESTER superior to the JEC-203 standard value.
