Operation and measurement systemsMeiden Digital Operating Desk
(Measurement Control PC System)
This measurement control system realized high precision measuring environment together with various data measurement and performance evaluation testing automation.
Product Features
It is a PC-based measurement control system. It can be broadly applied to durability tests of engines, power train testing system, etc.
- The PC running Windows 7 or higher can perform the the measurement function and the control function in one packege.
- By adopting remote I/O, it realized the digital data transmission of measured data.
- By applying Windows 7 as its OS, it has better graphic user interface by Windows.
- We realized the various controls using the application softwares; MATLAB (programming) and Simulink (simulation).
*The names of companies or products on this site are the trademarks or registered trademarks of their respective companies.
Specifications
Meiden Digital Operating Desk
| Display function | 主要機能 |
|---|---|

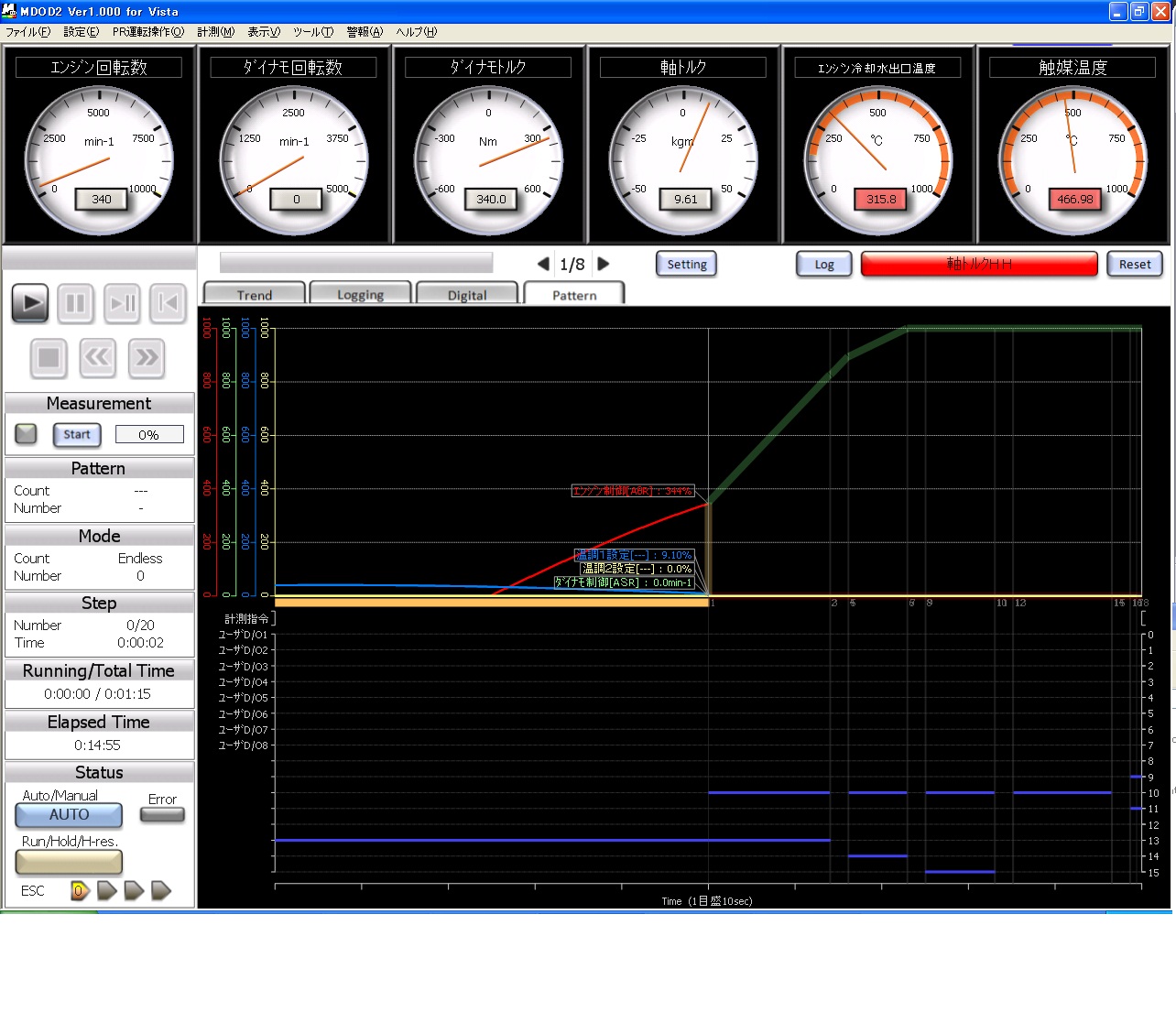

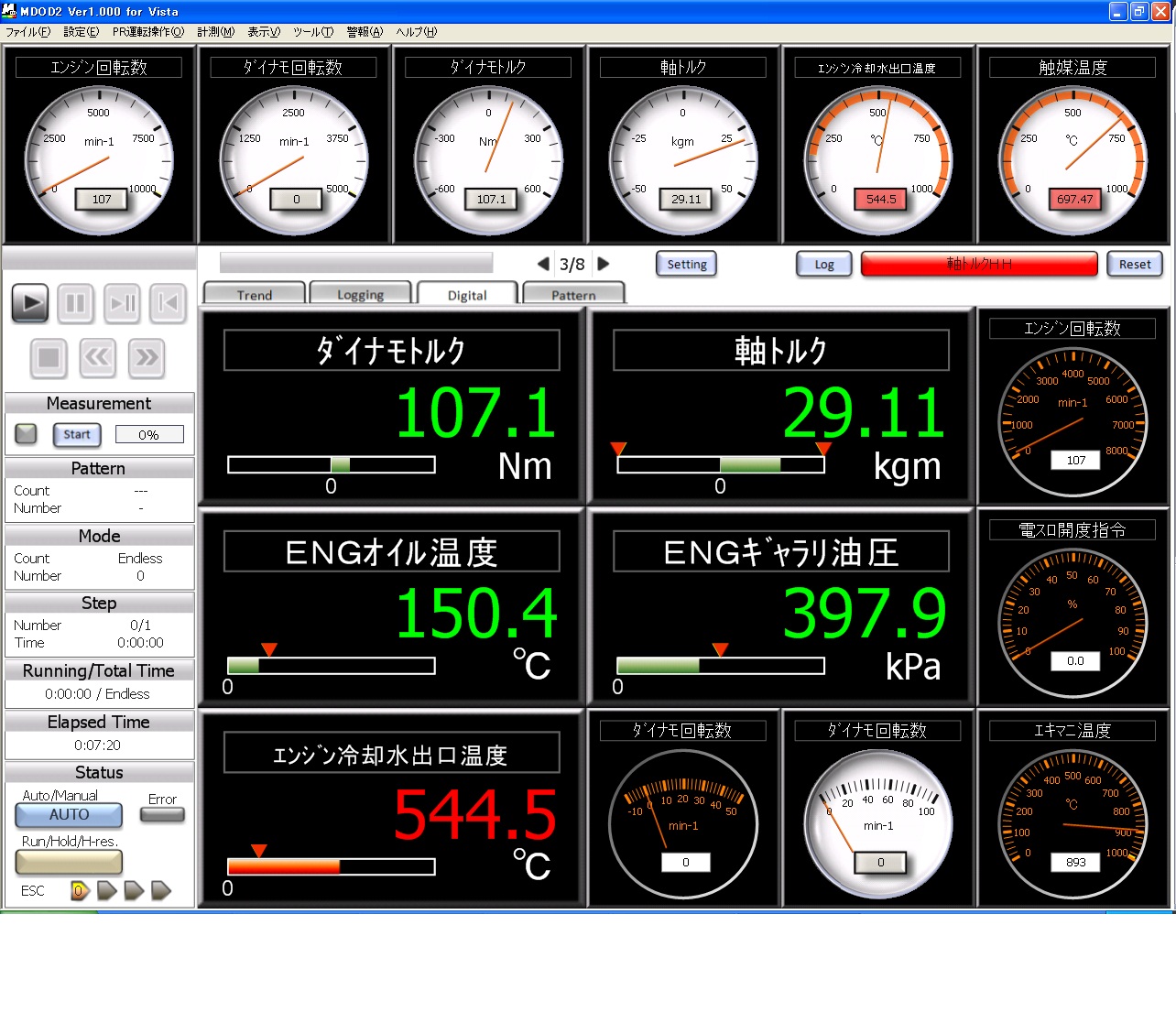

| Display function | Real time monitoring function (analog meter, digital meter, bar graph, trend, and running resistance monitoring) |
| Self-driving function |
|
| Setting control function |
|
| Measurement start condition | Start button |
| Measurement end condition | Stop button |
| Measurement items | Measurement, arithmetic calculation, special meter items |
| Measurement period | 0.1-1(S) |
| Maximum number of measuring times | 50,000 times / number of measurement items |
| Number of data files | 99 times / test |
| Other | Time (S), interlocking with the completion of fuel consumption measurement, number of measurement items: maximum 93 items |
| Monitoring the upper and lower limits | Monitoring items: measurement / computing, Monitor directions: uppermost limit, upper limit, lower limit, lowermost limit, Setting of the monitor timer, Monitor ON/OFF |
| Correlation monitoring | Monitor pattern (combination within 10 patterns), Monitor directions: upper limit, lower limit, Setting of the monitor timer, Monitor ON/OFF |
| Measurement at failure event | Measurement period: 0.1 s, Number of measuring times after a failure occurrence. 2,000 times, Measuring items: all measurement data |
| Standard spread sheet | By general-purpose spreadsheet software: Excel |
| Option | 1 msec high speed measurement, External interface: RS-232C, LAN, Horsepower performance chart |
