Product Features

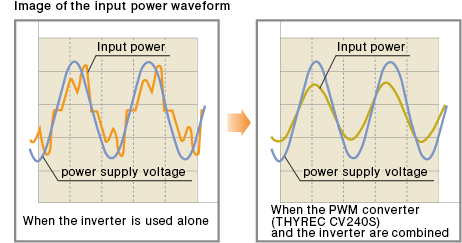

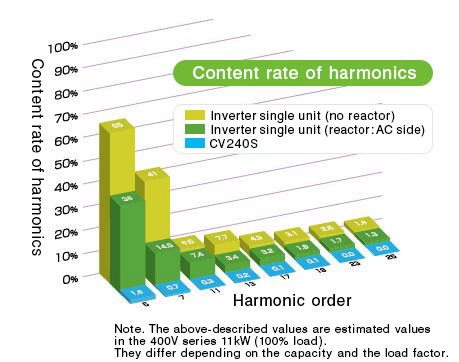

the harmonic to the power supply side is drastically suppressed by PWM current control. This control carries out sinusoidal wave approximation so that the waveform of the input current becomes a sinusoidal wave. When it is used in combination with an inverter, it can be handled as "self-excitation three-phase bridge (K=0)" in accordance with the guidelines for harmonic by the Ministry of Economy, Trade and Industry.
This product has a 120°conduction control method besides the PWM control method, and it is capable of power regeneration operation with a less expensive input filter. It is ideal for application with rapid deceleration or frequent acceleration and deceleration, and a substantial energy saving effect is realized by returning the regeneration energy to the power supply side.
We offer the product series: six models of the 200V series (7.5 kW to 90 kW) and fourteen models of the 400V series (7.5 kW to 660 kW) .

• Suppression of the harmonic current on the power supply side
• Implementation of high power factor control
• Energy saving by power regeneration operation
• Capable of using common converter method

Applications and Solutions

When the setting of the frequency is rapidly decreased or it is performed in a condition where the actual speed of the motor is larger than the output frequency of the inverter during the deceleration, etc., the electric energy returns to the inverter from the motor. This is called "regeneration".

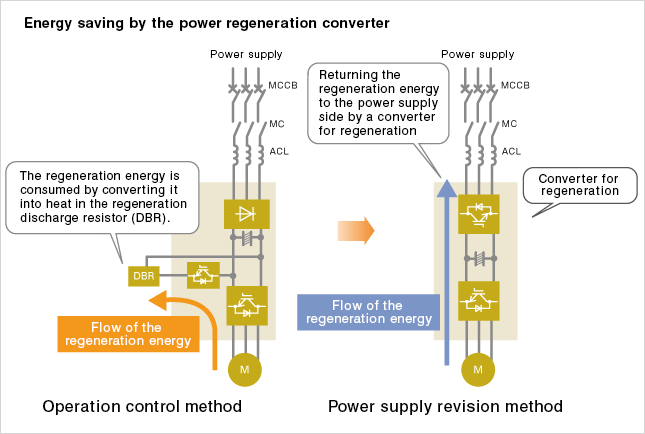

Normally, the regeneration energy is consumed by converting it to heat in a regeneration discharge resistor (DBR) connected to the DC part of the inverter. By returning the regeneration energy to the power supply side through a converter for power regeneration, the conventially wasted energy can be reused and it helps the energy saving.
When the voltage is low, THYFREC CV240S (power regeneration converter) and a low voltage inverter (THYFREC VT350) are used together.

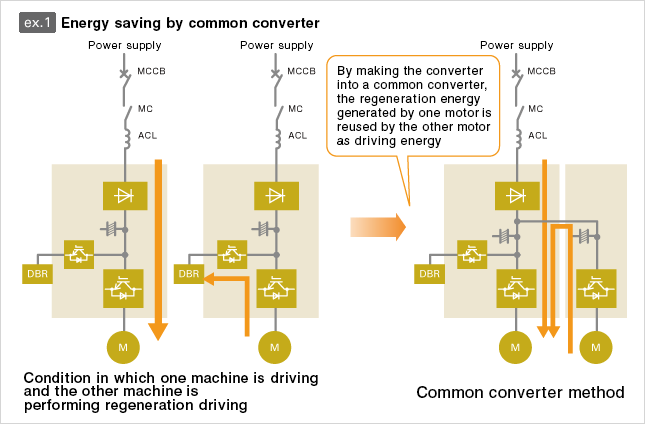

When multiple inverters are used, energy may be saved when the AC part of the inverter is connected and it is configured to share the converter.

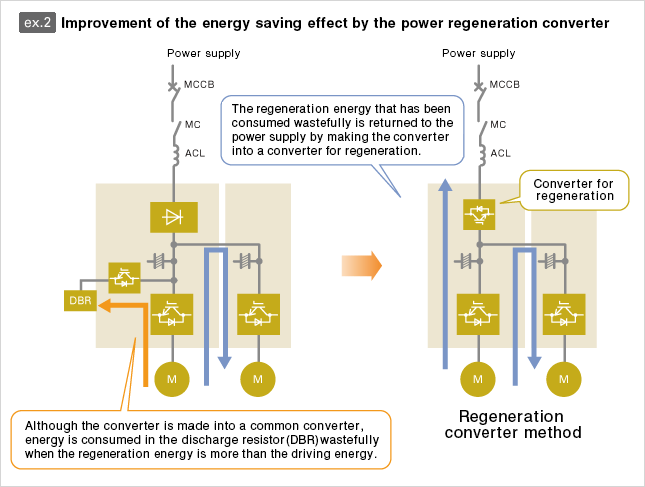

Even in case of the shared converter configuration, it is common to see that the regeneration energy is consumed in the discharge resistor. In that case, energy can be saved further by using a power regeneration type converter for the cooomon converter.

Specifications

Quick reference table

This is a quick reference table showing the each series motor voltage and capacity range. Just one look, you could understand our offerings.

AC motor drive

Category		Models	Voltage	Output (kw)
Low voltage motor drive	For elevators	THYFREC VT800	200 V / 400 V Series
Related products	Power regenerative converter	THYFREC CV240S	200 V / 400 V Series
Medium voltage motor drive	For cage type motors	THYFREC VT730S	3000 V / 6000 V Series
