Global Standard TYPE-iDrivetrain TYPE-i
This is an optimal system for high precision drivetrain tests as it could perform various transient operations and simulation tests.
Product Features
- Applicable to the evaluation tests on durability and performance including rapid acceleration and deceleration
- High torque and high power rate dynamometer to meet with the transient operation
- Axially moving unit comes as standard equipment.

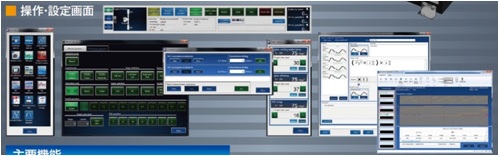

- Better operability by touch screen interface.
- By adopting multi-core CPUs, it realized the compact design of the unit.
Product specification of Dynamometer Drivetrain TYPE-i DT220 (single unit)
Capacity | 220 kW (continuous) 330 kW (short-time) |
---|---|
Rated torque | 3,000 Nm (continuous) 4,500 Nm (short-time) |
Rotation speed | 700/3,000 min-1 |
Inertia value (J) | Approx. 5.3 kgm2 (including CP...) |
Overload | 150%-60sec |
Acceleration and deceleration | 5407 min-1/s (continuous) 8111 min-1/s (short-time) |
control panel | THYFREC VT340DY (common converter) |
Common specifications for Drivetrain TYPE-i Operation Measurement System
Common specifications for Drivetrain TYPE-i Operation Measurement System(PDF:1.3MB)
