It is a low noise and low vibration motor with drastically reduced torque ripple by adopting a surface magnet PM motor and optimizing the shape of the magnet.
Further, its design factored such matters as malfunctions due to the installation site conditions or the leakage current reduction causing the deterioration of control performance.

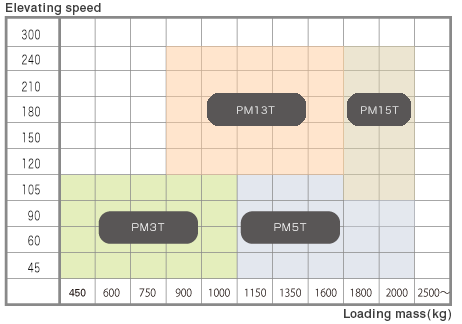

As the elevator motor, a series of loading mass 450 kg to 2,000 kg and elevating speed 45 m/min to 105 m/min and a series of loading mass 900 kg to 2,000 kg and elevating speed 120 m/min to 240 m/min are offered as a standard series.

• The rich elevator drive technology resources developed for 30 years.
• An SPM motor is applied.

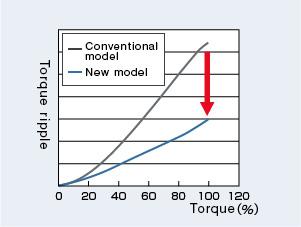

• A comfortable ride is provided by realizing high torque and low torque ripple.
• No machine room (in the case of the slim PM3T machine)

The elevator has become essential product for our daily life in response to the needs of barrier-free housing and high-rise buildings, etc. It is mainly consisted of a controller (doing elevator operation management), hoist unit (moving the elevator car) and an inverter (controling the hoist motor.)
Recently, the machine room-less elevator systems became common and these systems are being used in many places starting from the train stations, etc.
