PM100series

High performance and high efficiency PM motorSelf-starting type PM motor (PM100 Series)

Low speed, mid-speed and high-speed series are available to meet the various needs.

  • Low voltage
    Rated voltages are 200 V class and 400 V class.
  • AC
    It is an AC-driven motor.
  • Dedicated model
    It is a dedicated motor for each machinery.
  • For variable speed machinery
    It is a motor for variable speed machinery.
  • Fully enclosed type
    It has an enclosure that is protected against solid foreign objects of 1.0 mm Ø except the external fan part (IP4X)/.
  • Horizontal type
    The installation method is horizontal.
  • Vertical type
    The installation method is vertical.
  • Flange
    The installation method is flange mounting.

Catalog Download

Contact Us

Product Features

Thanks to damper winding, it can self-start using the commercial power.Further, the mounting dimension is the same as an induction electric motor, and replacement from the induction electric motor is very easy.
The rotor is a cage type by integrally forming during the aluminium die casting and has a solid structure. Using a high performance permanent magnet, it maintains the stable characteristics for a long period of time.

  • Replacement from the existing induction motor unit is very easy.
  • Tough structure
  • Stable characteristics

Applications and Solutions

The self-starting type PM motors and the inverters for a synthetic textile machine that are applied to a synthetic fiber (synthetic textile, below) line system have been adopted by many customers.

Textile machines have used AC variable speed for a long time, and especially machines in the textile production line of long fiber spinning facilities, from gear pumps to winders, are individually driven.

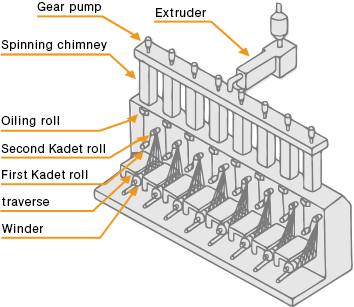

As seen in the configuration example of machines in the long fiber spinning process, the number of spindles per machine is large, dozens of compact AC motors are used.

Specifications

4L series (low speed series)

Frame number Rating output [kW] (highest rotation speed)
 Range of the permissible rotation speed [min-1］
 Range of the operation frequency [Hz]
 Moment of inertia of the rotor
［kg/m2］		 (Rotor GD2)
［kgf/m2］		 External surface structure
63M 0.6 600-4500 20-150 0.001 -0.0039 Totally-closed
80M 0.8 600-4500 20-150 0.002 -0.0082 Totally-closed fan-cooled
80M 1.6 600-4500 20-150 0.0035 -0.014 Totally-closed fan-cooled
100L 2.5 600-4500 20-150 0.008 -0.032 Totally-closed fan-cooled
100L 5.0 600-4500 20-150 0.013 -0.052 Totally-closed fan-cooled
132S 8.0 600-4500 20-150 0.03 -0.13 Totally-closed fan-cooled
132M 11.0 600-4500 20-150 0.05 -0.19 Totally-closed fan-cooled
Frame number Rating output [kW] (highest rotation speed)
 Range of the permissible rotation speed [min-1］
 Range of the operation frequency [Hz]
 Moment of inertia of the rotor
［kg/m2］		 (Rotor GD2)
［kgf/m2］		 External surface structure
63M 0.8 600-8100 20-270 0.001 -0.0039 Totally-closed fan-cooled
80M 1.4 600-8100 20-270 0.002 -0.0082 Totally-closed fan-cooled
80M 2.2 600-8100 20-270 0.0035 -0.014 Totally-closed fan-cooled
100L 4.0 600-8100 20-270 0.008 -0.032 Totally-closed fan-cooled
100L 7.0 600-8100 20-270 0.013 -0.052 Totally-closed fan-cooled
132S 9.0 600-6600 20-220 0.03 -0.13 Totally-closed fan-cooled
132M 12.0 600-6600 20-220 0.05 -0.19 Totally-closed fan-cooled
Frame number Rating output [kW] (highest rotation speed)
 Range of the permissible rotation speed [min-1］
 Range of the operation frequency [Hz]
 Moment of inertia of the rotor
［kg/m2］		 (Rotor GD2)
［kgf/m2］		 External surface structure
63M 1.1 600-20000 20-667 0.001 (0.0039) Totally-closed fan-cooled
80M 2.2 600-15000 20-500 0.002 (0.0082) Totally-closed fan-cooled
80M 3.5 600-15000 20-500 0.0035 (0.014) Totally-closed fan-cooled
100L 5.5 600-12000 20-400 0.008 (0.032) Totally-closed fan-cooled
100L 9.0 600-12000 20-400 0.013 (0.052) Totally-closed fan-cooled
132S 11.0 600-10000 20-330 0.03 (0.13) Totally-closed fan-cooled
132M 15.0 600-10000 20-330 0.05 (0.19) Totally-closed fan-cooled
  1. *1Totally-enclosed ... Totally-enclosed splashproof non-ventillated type IP44,IC410
    Totally-enclosed ... Totally-enclosed splashproof fan-cooled type IP44,IC411

Please feel free to contact us for the specifications that are not described in this table, using the contact form.

What is PM motor

The PM motor is a permanent magnet type synchronous motor that does not require any DC excitation. The rotor has the same structure as a cage type induction motor, and it has a built-in magnet to exhibit the performance of a synchronous motor. Because it can be started with commercial electric power and operated by synchronizing the frequency, highly accurate speed control can be easily performed without feedback control such as encoding.
