PeripheralsMetallic Resistor and Controller
The metallic resistor can be used in the rotor‐resistance starting of a three-phase wound-rotor induction motor.
-
- Low voltage
- Rated voltages are 200 V class and 400 V class.
-
- AC
- It is an AC-driven motor.
-
- Auxiliary units
- It is an auxiliary unit of motor.
Product Features

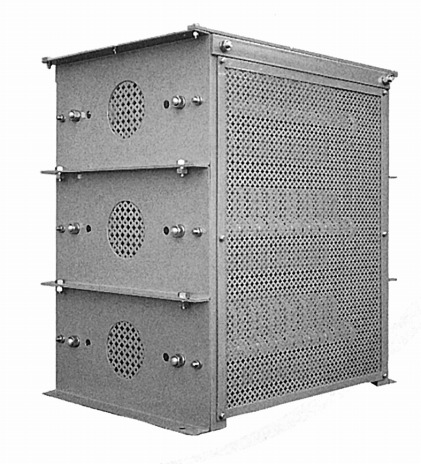

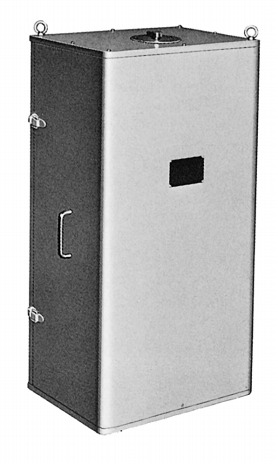

They are a starting controller and a starting resistor that are used in the rotor-resistance starting of a three-phase wound-rotor induciton motor. For starting controller, there are a manual operation type and a motor operation type. In both types, the contact mechanism is a cam push-cutting type. The starting resistor is a grid type metallic resistor.
- The contact mechanism is a cam push-cutting type and has an excellent opening and closing performance.
- One-touch operation
Specifications
| Control system | Type | Applicable electric motors |
|---|---|---|
| Motor operation | CSM-4090-E | -400kW |
| CSM-8130-E | -2000kW |
Please feel free to contact us for the specifications that are not described in this table, using the contact form.
Quick reference table
This is a quick reference table in which the ranges of voltage and capacity of the motor of each series are clear at a glance.
| Category | Models | Output (kw) |
|---|---|---|
 |
||
| Liquid resistor |  |
|
| Starting controller and resistor |  |
|
| Disc clutch and brake | ||
| Pad type disc brake | ||
| Drum brake for cranes / general industry / steel rolling auxiliary machines | ||
| Disc brake for cranes / general industry / steel rolling auxiliary machines | ||
| Drum brake for gate motors |
