Renovation Plan
We will support your renovation plan with utmost care.
Supporting the renovation plan
Power generating facilities
We respond to customer requests such as [We want to have an emergency power supply facility that is highly dependable even in the middle of earthquake disaster.], [We want to eliminate claims possibly arising in the case of noise and black fume during rutine inspection.], and [We want to use the generator room more efficiently.]

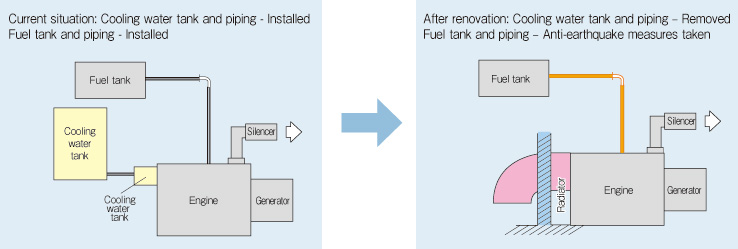

Countermeasures against earthquake disasters
We propose an emergency power generating facilities that is not affect by cutting off the cooling water cansed by earthquake. (Cooling water tunk system → radiator method or Gas turbine method)
![](/mec/product_service/renovation/img/index_im01.jpg)
Investigation into damage data about private power generating facilities at the time of the Hanshin-Awaji Great Earthquake
- System shutdown due to interruption of water supply for water-cooled generators: 12.0%
- System shutdown relating to fuel supply for power generating systems: 13.7%
Water outage | Fuel | Failures | Others | ||
---|---|---|---|---|---|
Water-cooled power generating facilities | Out of 33 units | 16 units | 8 units | 9 units | 10 units |
Radiator type power generating facilities | Out of 195 units | Nil | 36 units | Nil | 2 units |
Gas turbine generators | Out of 96 units | Nil | 14 units | 1 unit |
- A great effect is demonstrated for the gas-turbine power plant where no cooling water is required.
- A substantial effect can be expected if countermeasures are taken against earthquakes for fuel tanks and piping systems.

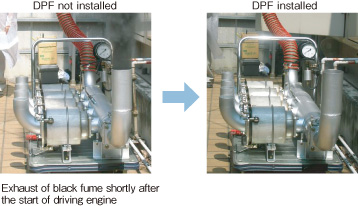

Environmental measures
It is possible to select a power generating unit for which black fumes of exhaust gases is taken into consideration.
(Optional setup of Fume Removal Unit DPF*)
- *Diesel Particulate Filter
- With the DPF equipment, more than 99.97% of black fume and more than 80% of particulates can be removed.
![](/mec/product_service/renovation/img/index_im02.jpg)

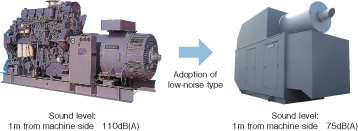

Space saving
By renovation to all-in-package power generating equipment, it becomes unnecessary to select a large installation location and a compact system layout can be attained. (Silent type all-in-package system)
- With a soundproof package, audible sound level can be lowered to 75dB(A) or below at a point one meter distant from the machine.
- All the devices can be accommodated inside the cubicle. (Also available for high-voltage machines)
- When installed outdoors, the generator room can be used effectively.
Existing facilities can also be utilized for renovation. Subsidiary facilities can be used without modifying the generator room.
![](/mec/product_service/renovation/img/index_im03.jpg)
Catalog for reference: 35 -1100kVA Emergency disel power generation device CB20-2001
200 -1250kVA Emergency disel power generation device CB28-2352
200 -1875kVA Emergency disel power generation device CB21-2019
