High voltage switchgear5-tier medium voltage combination starter
Industry leading 5-tier vacuum megnetic contactor (VMC) compartments for medium voltage motors, transformers capacitor banks
Product Features
The flat design VMC allows a maximum of 5 stacking, reducing the footprint by approximately 60%. Medium voltage live parts are isolated with an earthed metal and a shutter made of insulating material. The insulating mold partition walls ensure vertical busbars are isolated between phases and betwen phases and earth. The multi-functional digital relay and wide range CT require only parameter adjustments for different loads, capacities and starting methods, eliminating the need for replacing CTs.
- Small footprint
- Safe and reliable
- Flexible applications
Applications and Solutions

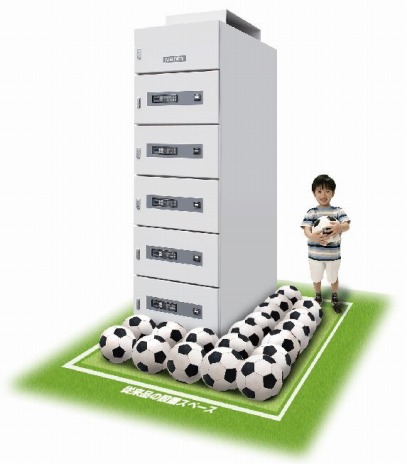

The small footprint allows installation in a confined space that is too small for similar products
Specifications
Specifications of MV motor combination starter(PDF:580KB)
- *Please refer to the catalog for details including external dimensions.
